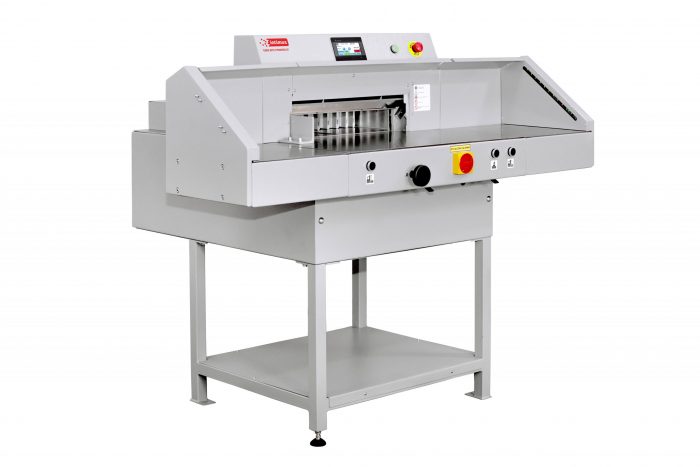

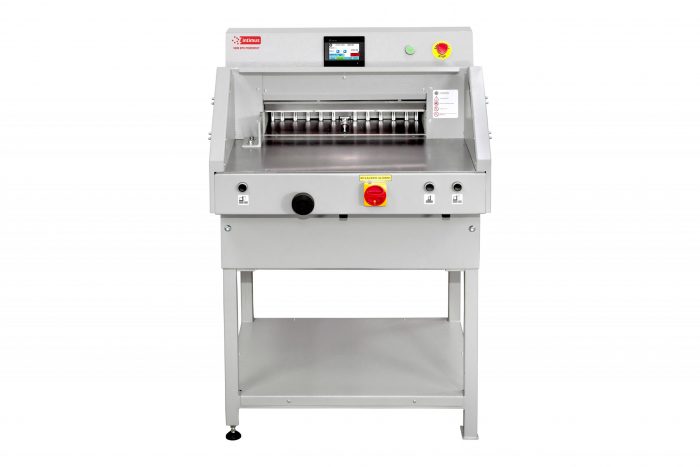

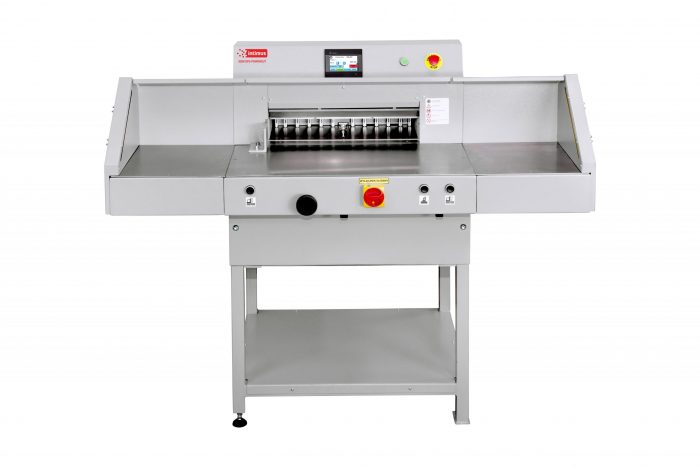

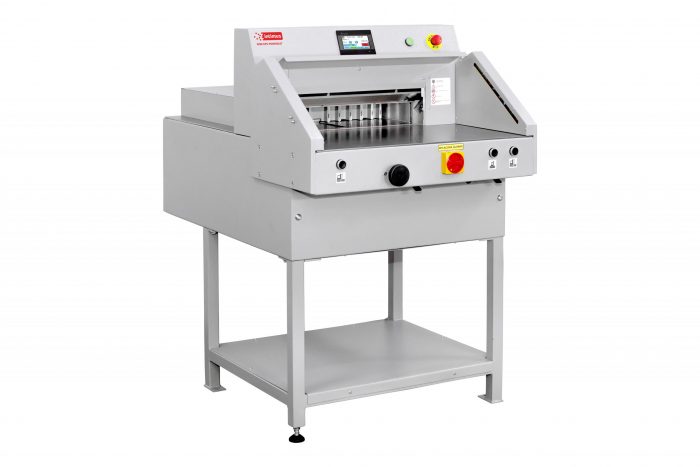

intimus 5280 EPS Powercut

Compact, sturdy and automated electric guillotine with robust metal construction to serve the customers for many years.

Equipped with electro-mechanical knife and clamp the guillotine is able to cut easily paper stacks of up to 800 sheets. Optional side tables allow a more efficient work flow. Suitable for high-volume use in copy shops, digital printing houses or book binderies.

  • 4″ Touch screen
  • IR safety curtain
  • Working width 520 mm
  • Safety 2 hands operation
  • LED cutting line
  • Optional side tables
  • 100 programs with 100 steps

Datasheet

User manual

REQUEST MORE INFORMATION
  • Description
  • Specifications
Description

The user-friendly, fully programmable 4” touch screen with 100 individual programs with 100 steps in each program offers high flexibility and accuracy. Additional business card cutting mode integrated. 9 different languages as a standard, other available as option. The LED optical cutting line indicator guarantees easy alignment of cutting marks for precise cuts. The electronic hand wheel facilitates manual backgauge positioning, accurate to the millimeter at variable speed. IR safety curtain on the front table, safety cover on the rear table and automatic Knife and clamp return ensure the highest level of safety. Electronically controlled two-hand operation: executing a cut is only possible by pushing two buttons at the same time. Safe and easy Knife change with a Knife changing device. Optional side tables available. CE-certified.

Specifications
Product Type

Electric

Cutting height

80 mm / 76 mm with false clamp

Cutting width

520 mm

Cutting depth

520 mm automatic/ 530 mm manual

Narrow cut

22 mm / 40 mm with false clamp

Cutting capacity

800 sheets

Noise level

74.6 db(A)

Dimensions (W x D x H)

833 x 1230 x 1244 mm (Without side tables)

Weight

310 kg

Power

230V / 50 Hz / 2000W
