HomePost PrintingGuillotines intimus 7310 EPSH Powercut
Click to enlarge

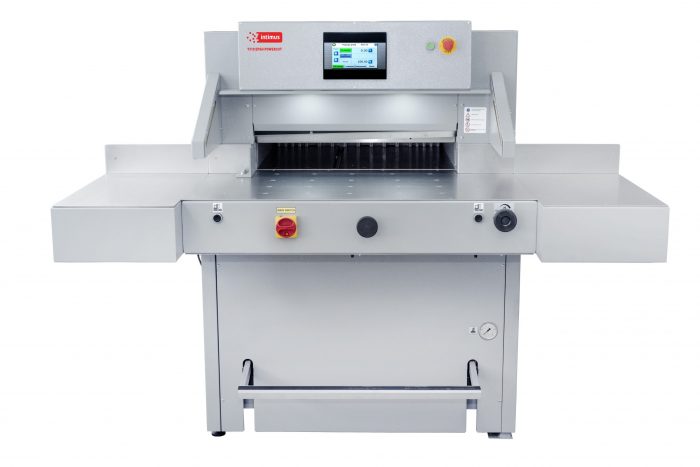

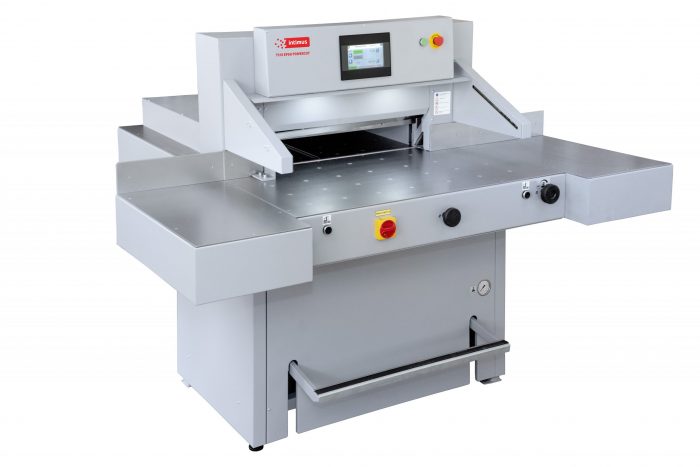

intimus 7310 EPSH Powercut

Heavy duty automated Hydraulic guillotine with robust metal construction to serve the customers for many years.

Compact, sturdy and automated hydraulic guillotine with robust metal construction to serve the customers for many years. Equipped with fully hydraulic knife and clamp the guillotine is able to cut easily paper stacks of up to 1000 sheets. Front and back air tables facilitate the work flow significantly. Suitable for heavy duty use in copy shops, digital printing houses or book binderies.

  • 7″ Touch screen
  • IR safety curtain
  • Working width 730 mm
  • Safety 2 hands operation
  • LED cutting line
  • Air table on front and back
  • 100 programs with 100 steps

Datasheet

User manual

REQUEST MORE INFORMATION
  • Description
  • Specifications
Description

The user-friendly, fully programmable 7” touch screen with 100 individual programs with 100 steps in each program offers high flexibility and accuracy. Additional business card cutting mode integrated. 9 different languages as a standard, other available as option. The LED optical cutting line indicator guarantees easy alignment of cutting marks for precise cuts. The electronic hand wheel facilitates manual backgauge positioning, accurate to the millimeter at variable speed. IR safety curtain on the front table, safety cover on the rear table and automatic Knife and clamp return ensure the highest level of safety. Electronically controlled two-hand operation: executing a cut is only possible by pushing two buttons at the same time. Safe and easy Knife change with a Knife changing device. Optional side tables available. CE-certified.

Specifications
Product Type

Hydraulic

Cutting height

100 mm / 97 mm with false clamp

Cutting width

730 mm

Cutting depth

710 mm automatic/ 730 mm manual

Narrow cut

30 mm / 60 mm with false clamp

Cutting capacity

1000 sheets

Noise level

75 db(A)

Dimensions (W x D x H)

1855 x 1755 x 1460 mm

Weight

600 kg

Power

400V / 50 Hz / 3000W
