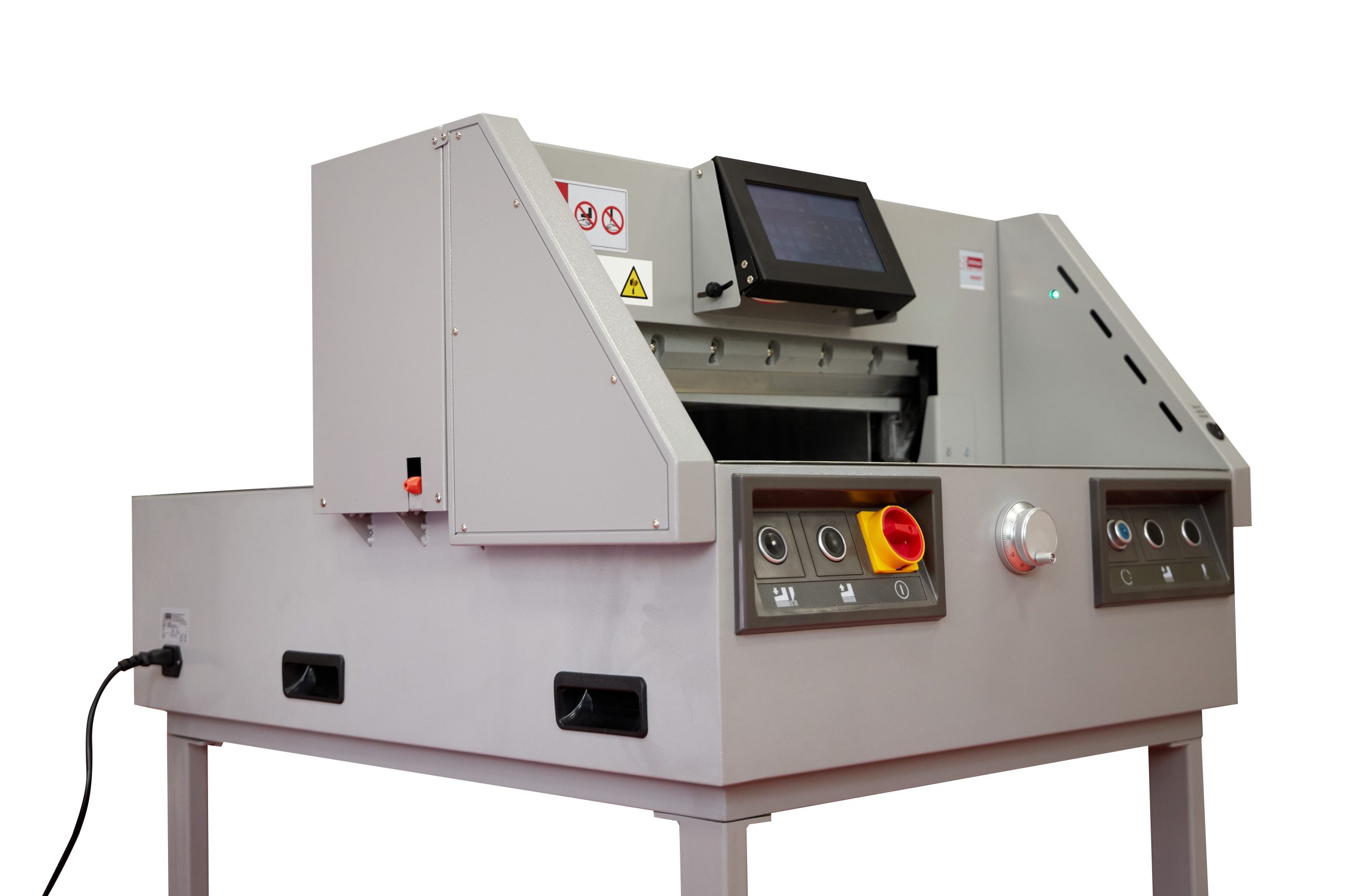

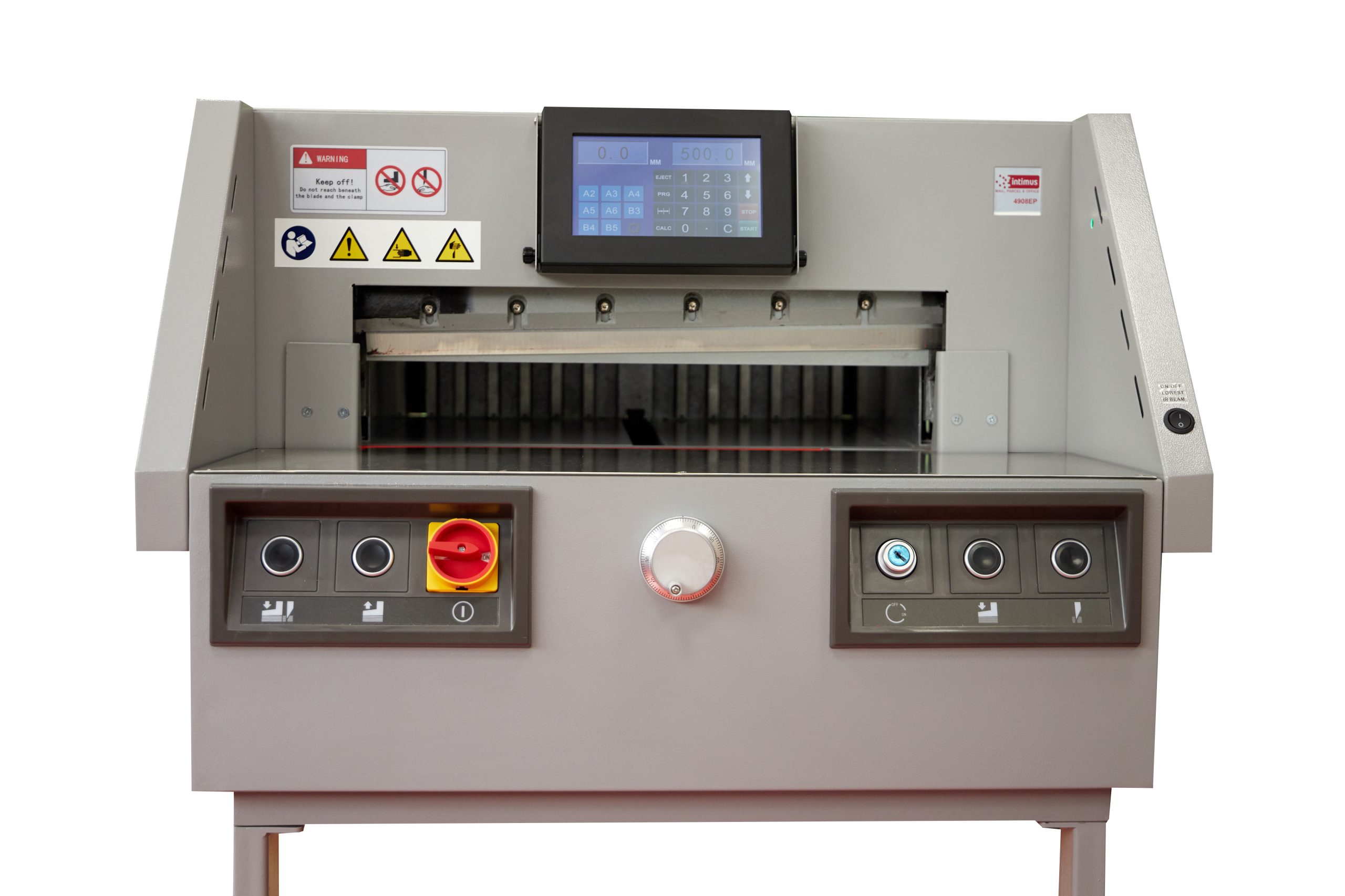

intimus 4606 EP
Programmable electric guillotine, with infrared safety beam.

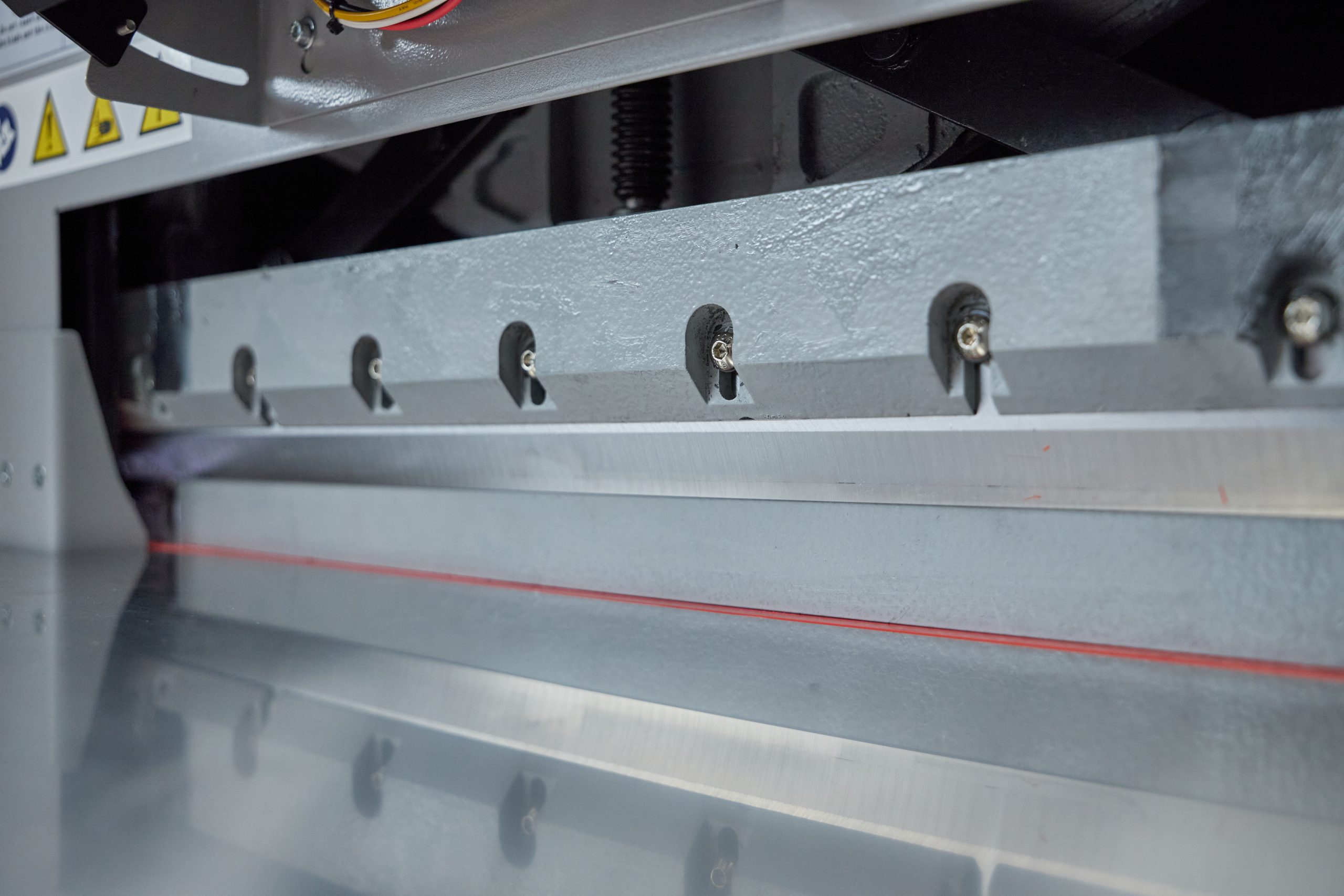

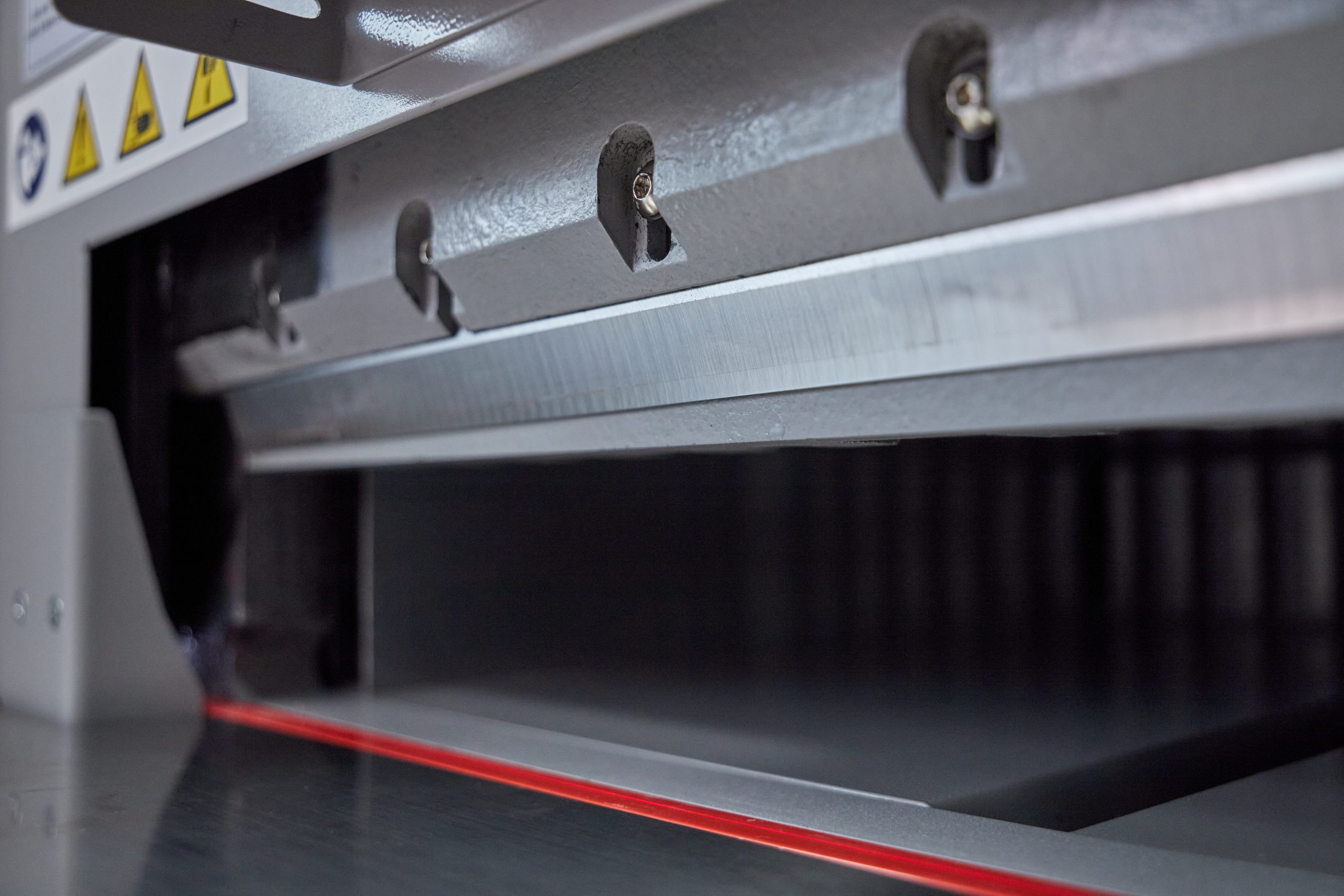

- LED Optical cutting line

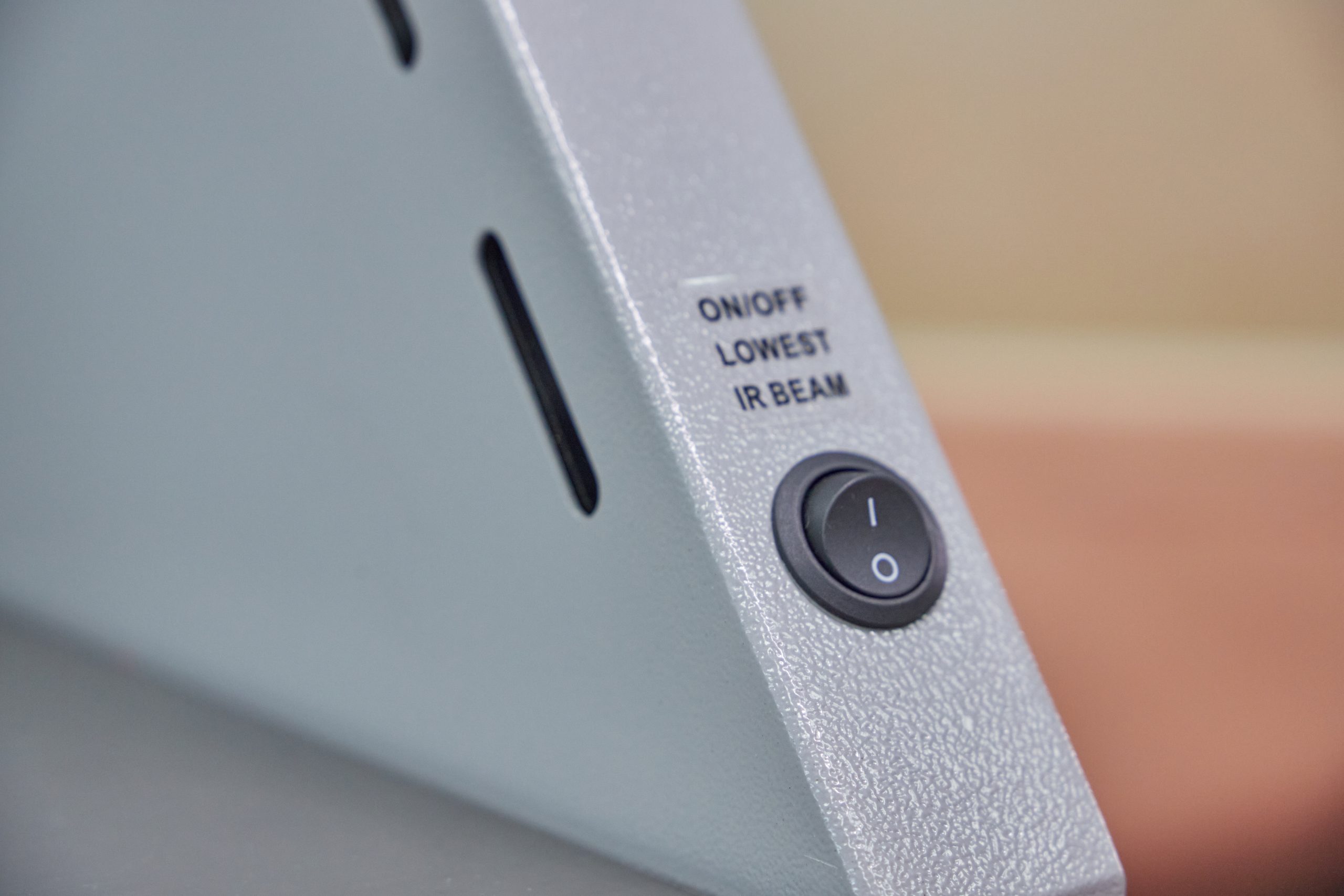

- Infrared security curtain
- Electrical blade and clamp drive

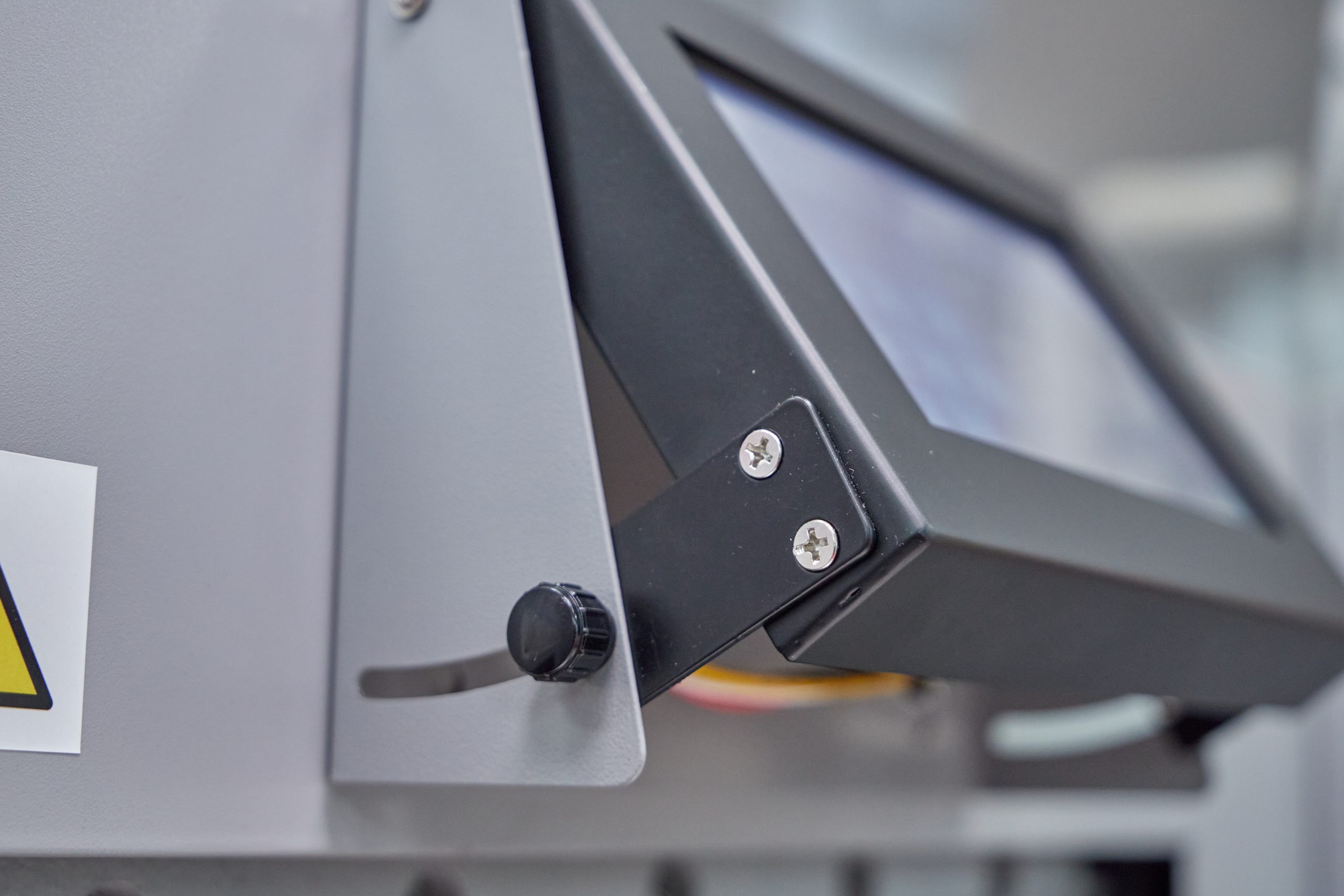

- 7″ touch panel
- Calculator function

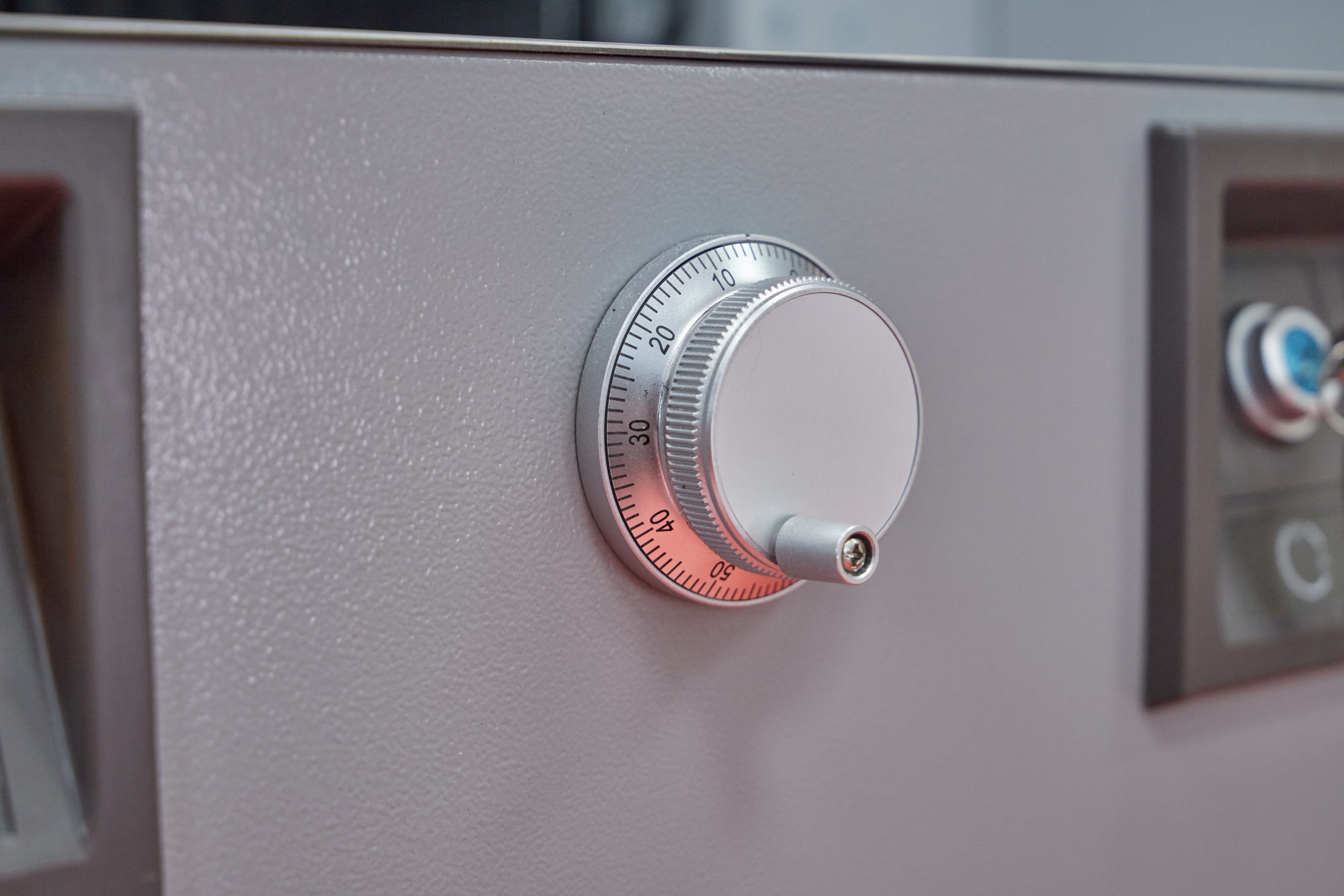

- Handwheel adjustment, digital trim size control
- Memory for up to 99 programmes/ task

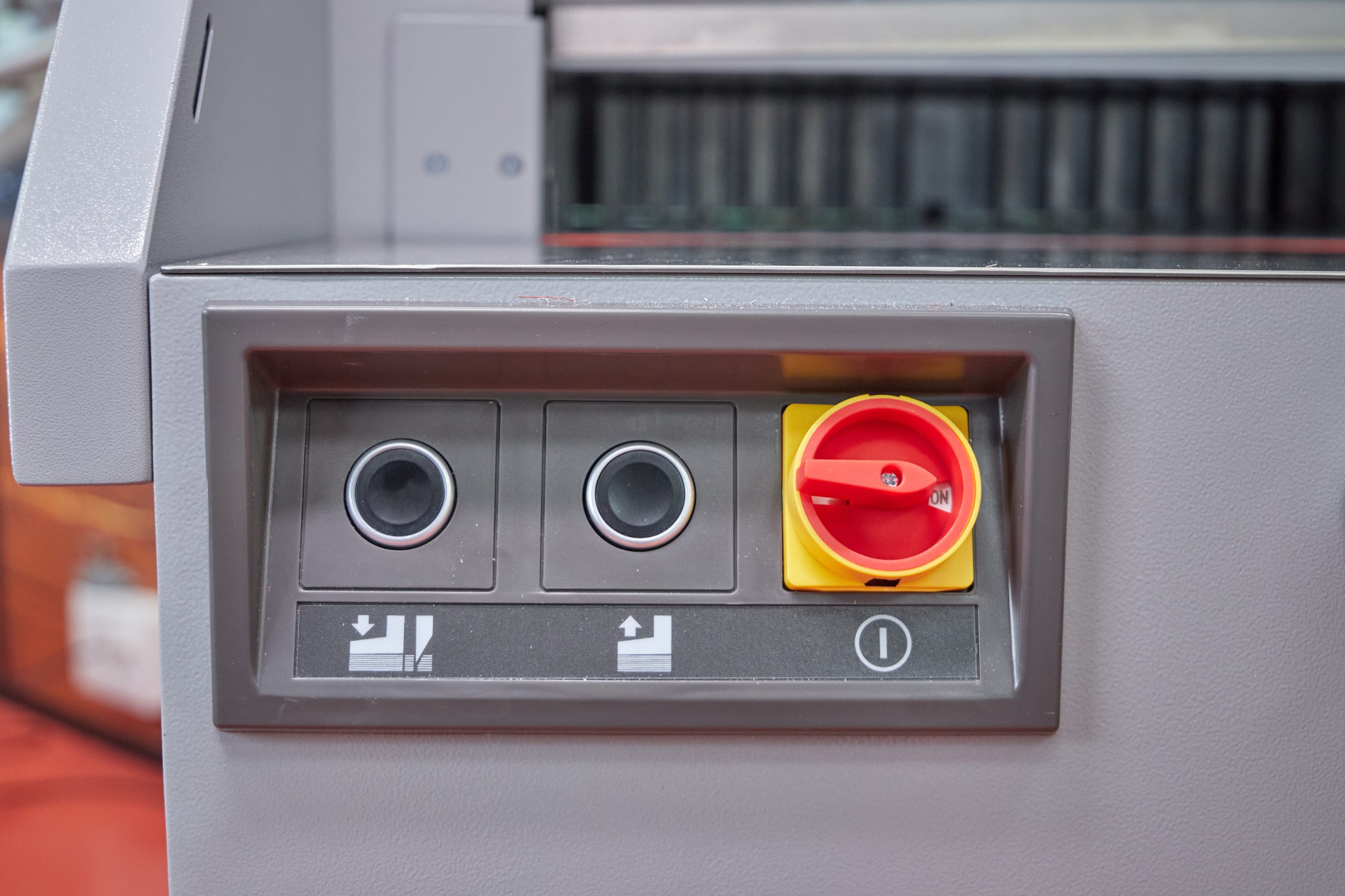

- 2 hand Safety operation

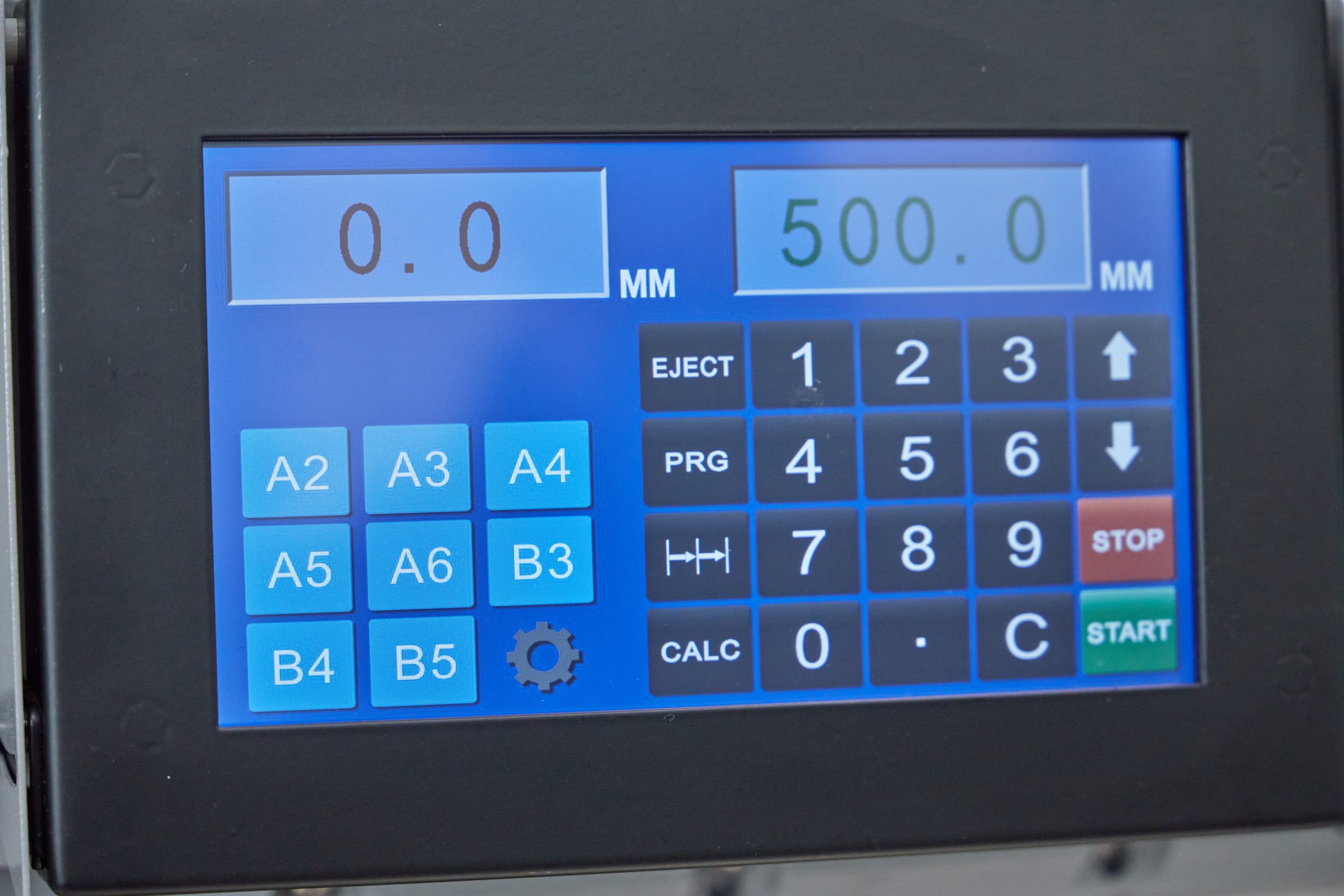

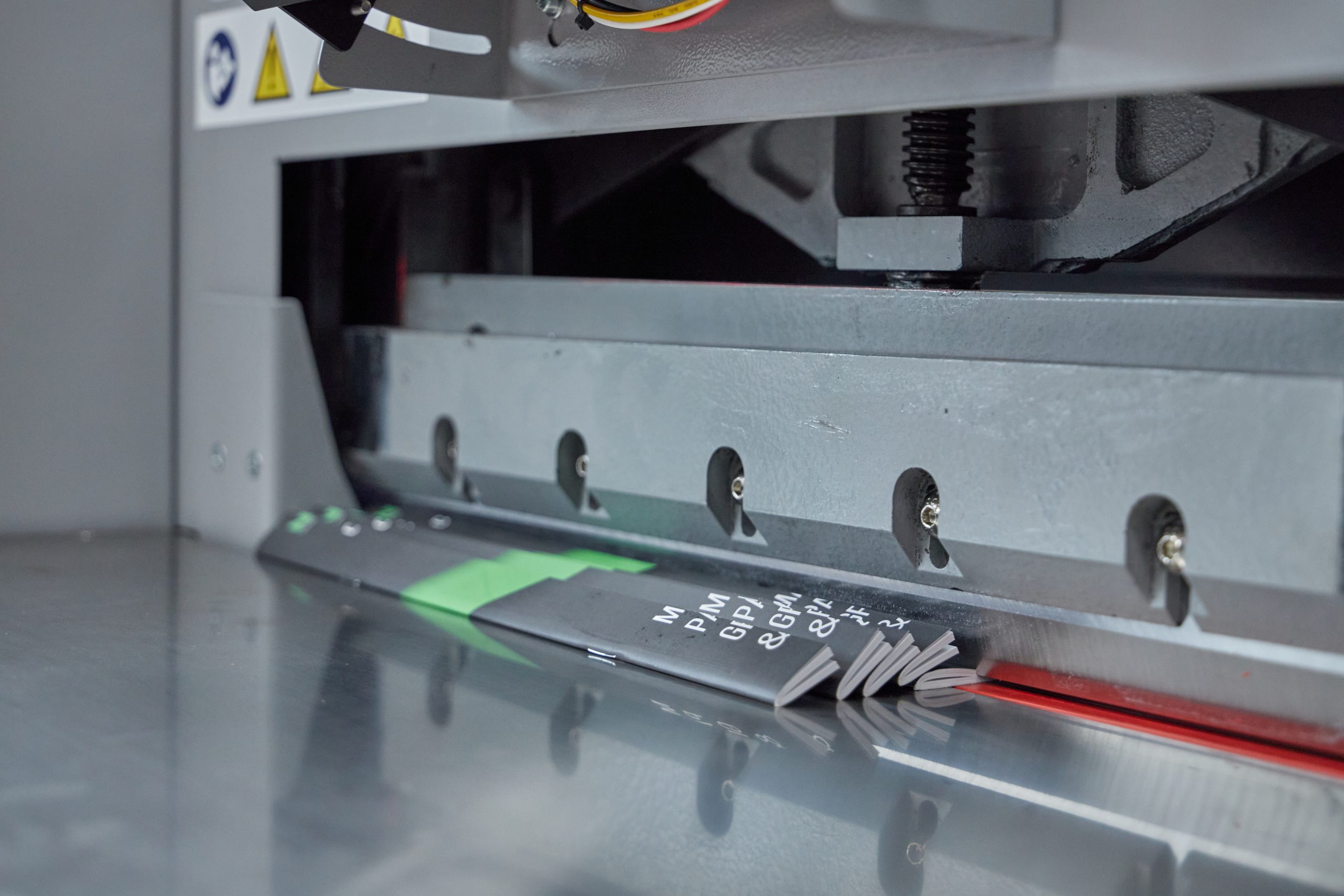

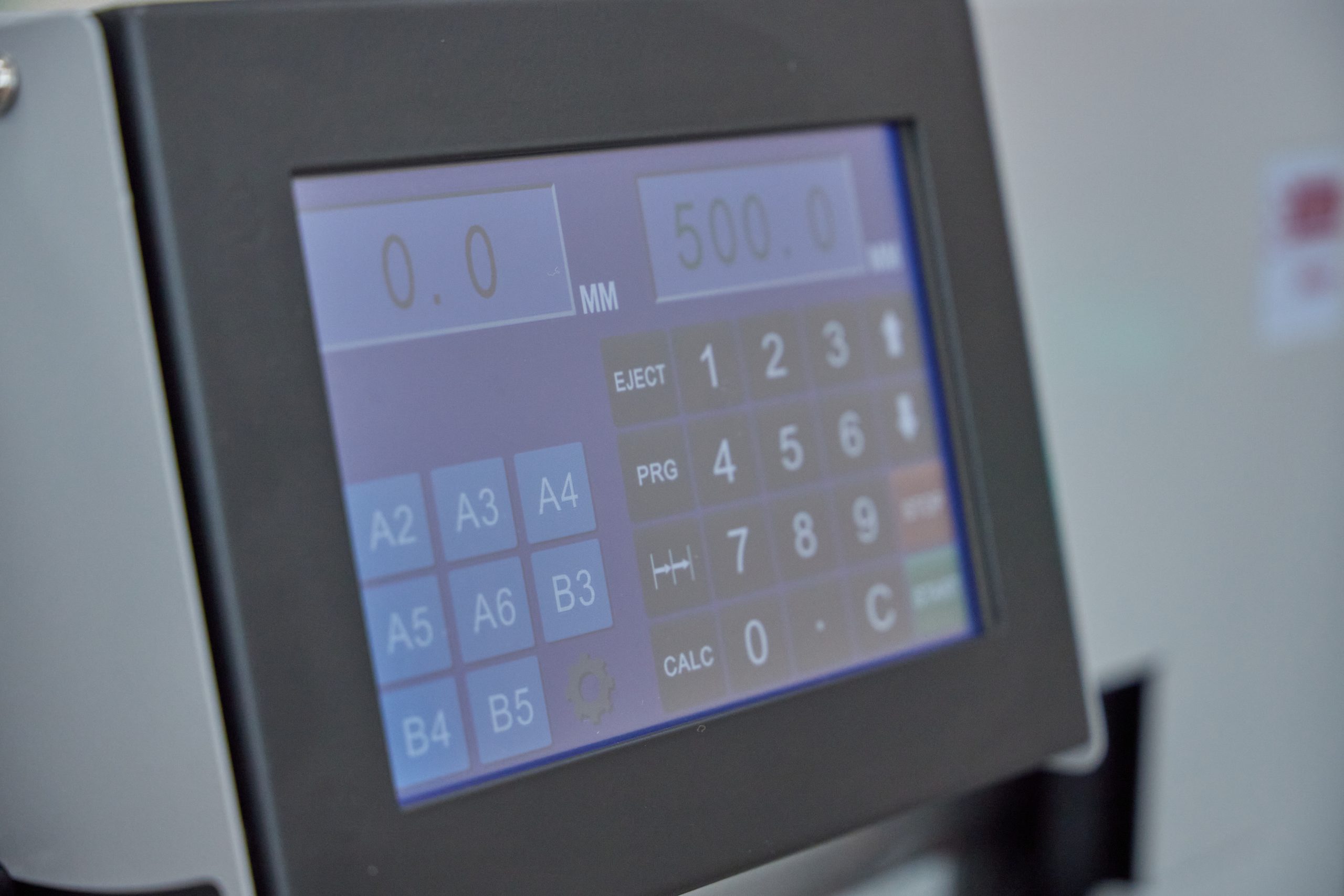

The 7″ touch panel allows you to control the entire equipment and easily select pre-programmed settings. Up to 99 individual programs can be stored in memory with 99 steps in each program. The LED optical cutting line ensures easy alignment of cutting marks for precise cuts. The electronic handwheel facilitates manual positioning of the rear stop, with millimeter precision at variable speed.

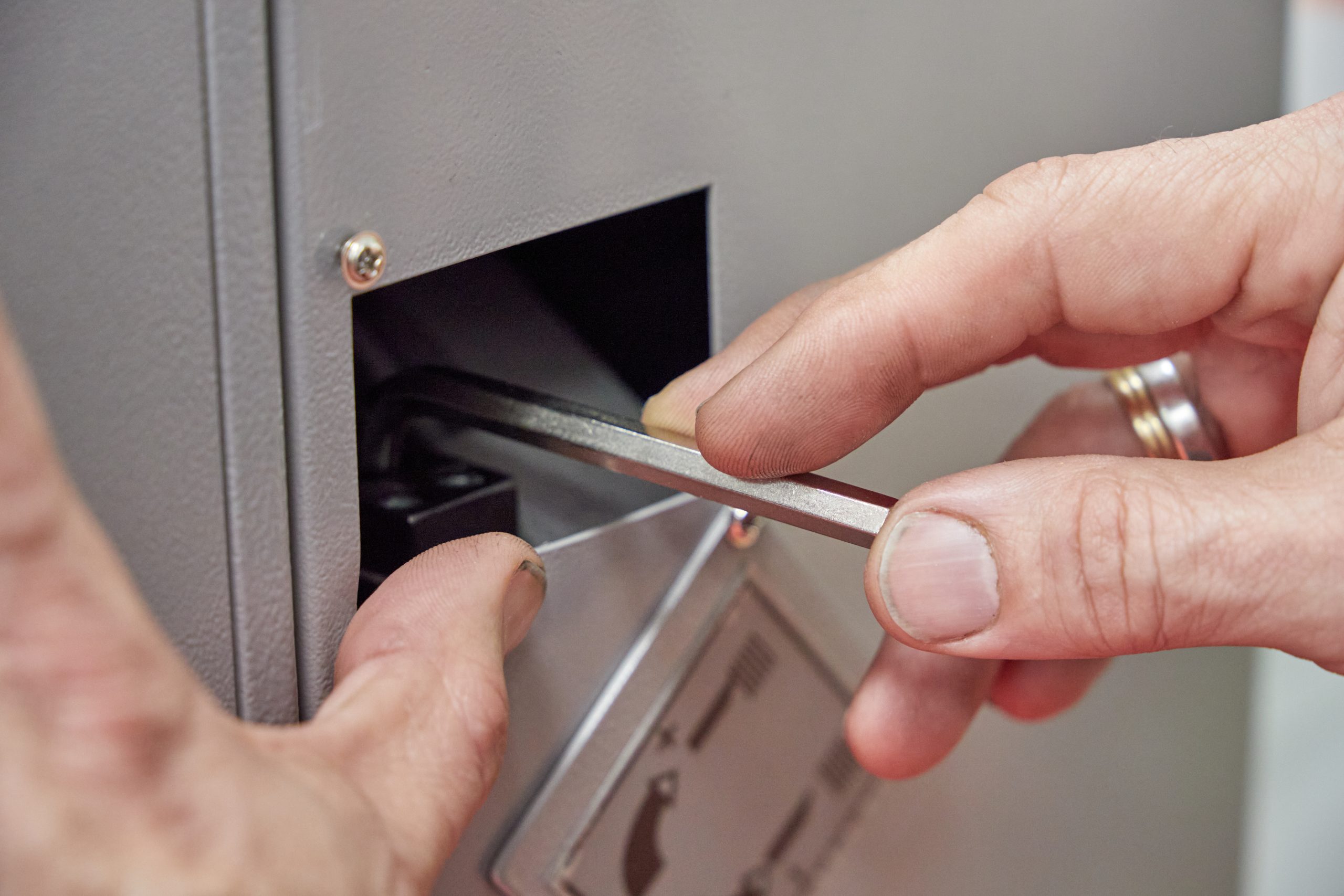

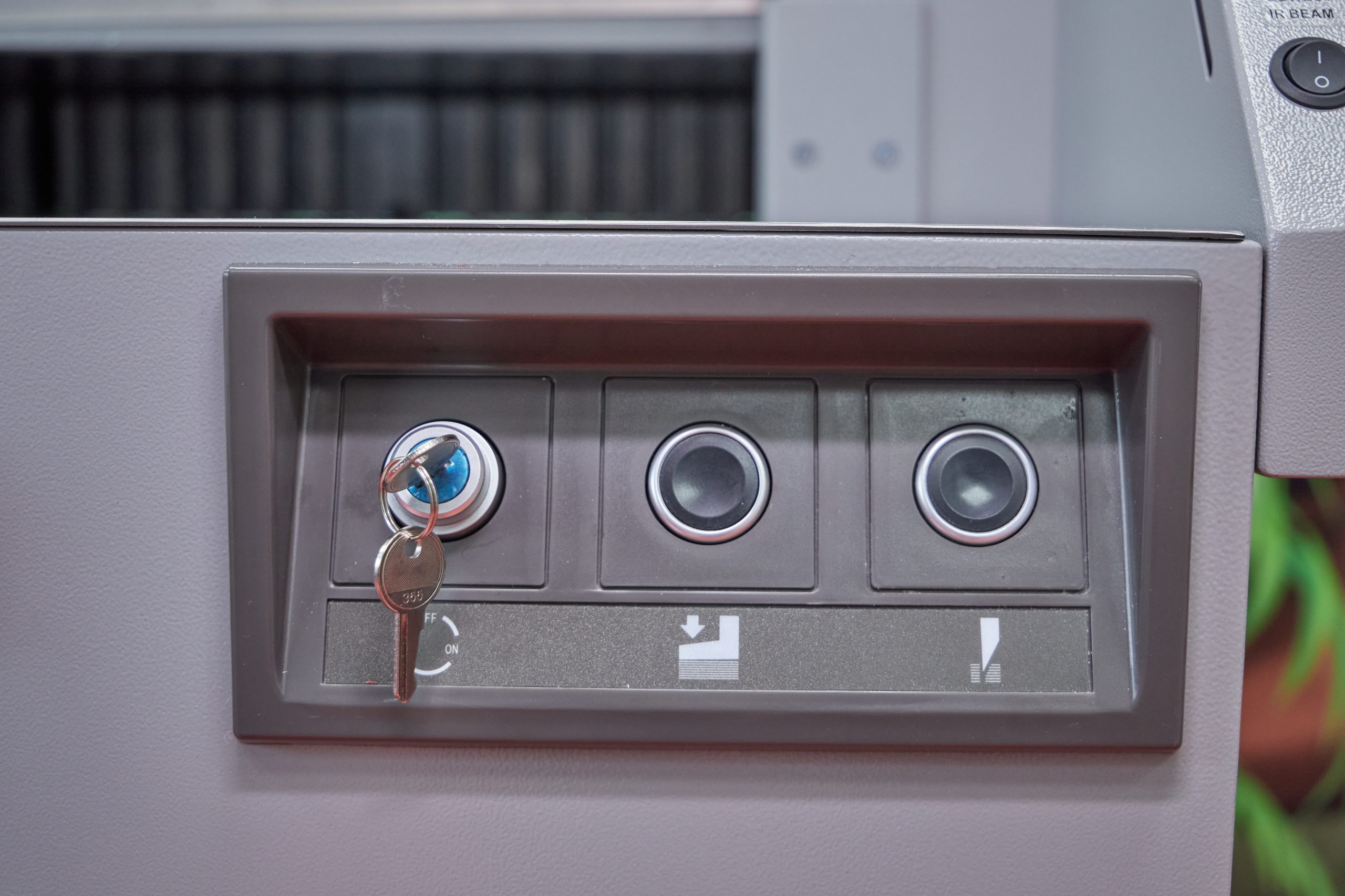

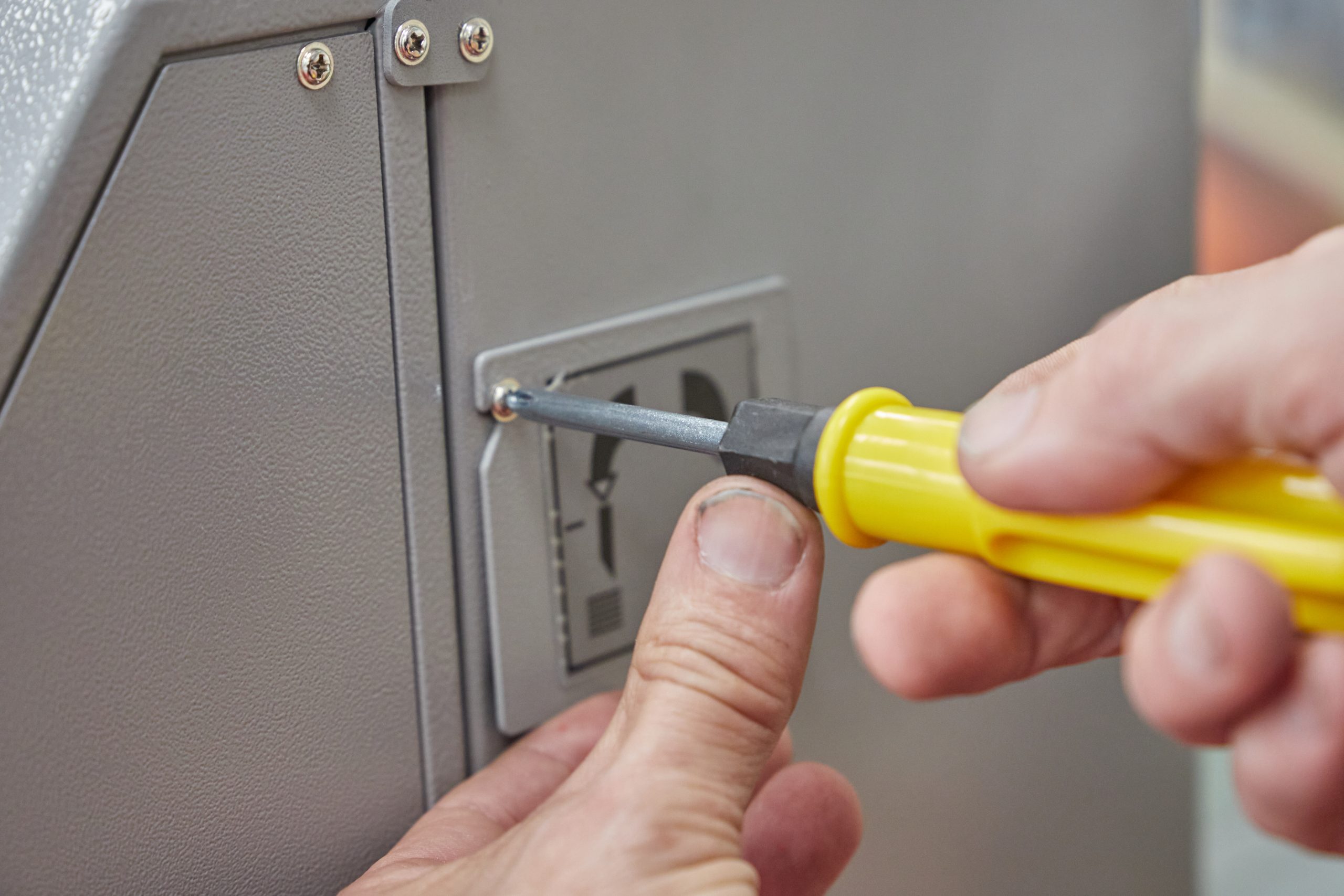

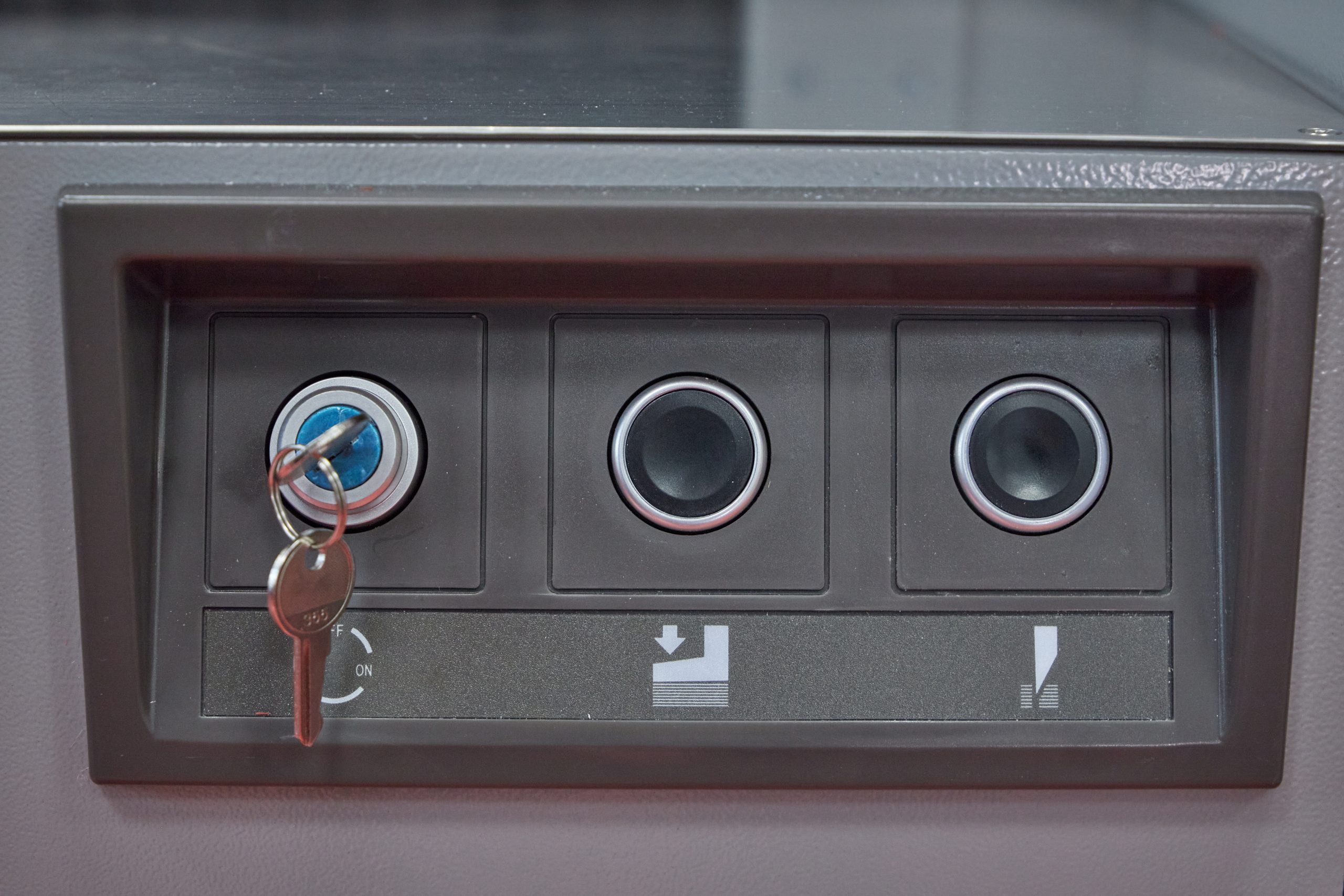

Two-handed operation: executing a cut is only possible by pressing two buttons at the same time. The infrared security beam prevents access to the cutting area during the process. Safe and easy blade changing with a blade changing device.
Among the main features of the 4606 EP Guillotine we can highlight its great ease of use, precision, safety, durability, simple maintenance and excellent price. The intimus 4606 EP comes as standard with repeat cut, push out and calculator functions
| Product Type | Electric |
|---|---|
| Infrared security curtain | Yes |
| Operation | 7" touch panel |
| Cutting width | 460 mm |
| Cutting height | 60 mm |
| Cutting depth | 460 mm |
| Narrow cut | 40 mm |
| Dimensions (HxDxW) | 1200 x 900 x 680 mm |
| Weight | 114 kg |
